LS-H1160 Roller Guide High-Speed CNC Machining Center for Large Precision Parts Cutting X/Y/Z 30/30/30 LS-H850/LS-H855/LS-H960/LS-H1270/LS-H1370
LS-H1160 roller guide high-speed machining center has a place in parts cutting and assembly with its high rigidity, high precision and 6 slider heavy-load roller type guides on the Z axis. LS-H1160 is a large-scale industrial automatic CNC machining center equipment specially developed and produced for aviation equipment parts, medical machinery micro parts, automotive industry precision parts and precision molds. LS-H1160 uses high-performance imported spindle speeds of 10000/12000/15000, which fully meets your requirements for processing speed.
Same series:LS-H850/LS-H855/LS-H960/LS-H1270/LS-H1370
Product specification
| Model Name | | Unit | LS-H1160 |
| Three-axis travel(X/Y/Z) | X-axis | mm | 1100 |
| Y-axis | mm | 600 |
| Z-axis | mm | 600 |
| Workbench size | mm | 1200×600 |
| Workbench load-bearing | kg | 800 |
| Workbench T-slot specifications | | 5-18-125 |
| Distance from work table to spindle nose | mm | 150-750 |
| Distance from spindle center to column guide surface | mm | 670 |
| Spindle taper hole specifications | | BT-40 |
| Spindle speed | rpm/min | 8000/12000 |
| Spindle motor power | kw | 1117.5 |
| Three-axis motor power (Mitsubishi) | kw | 21213 |
| Three-axis motor power (FANUC) | | β22/β22/β22 |
| Three-axis fast displacement X/Y/Z | m/min | 30/30/30 |
| Three-axis cutting feed rate | mm/min | 1-12000 |
| Positioning accuracy | mm | ±0.003/300 |
| Repeatability | mm | ±0.0025 |
| Tool magazine tool change type | | Disc type |
| Tool magazine capacity | pcs | 24 |
| Power Requirements | KVA | 20 |
| Air pressure requirements | kg/cm² | ≥6 |
| Z-axis counterweight method | | Nitrogen |
| Machine weight | kg | 7500 |
| Floor space (length x width x height) | mm | 3100×2750×2800 |
| Controller | | Mitsubishi/FANUC |
Product Feature
- Rib-type machine head design: the internal ribs are thickened and enlarged to greatly increase the processing rigidity.
- The base is wide, the column is a box-type structure, the saddle is widened and lengthened, and the heavy-load full-support design and solid structure can ensure heavy loads during processing.
- With three-axis coordinate control, the CNC horizontal lathe has the characteristics of wide processing range, high rigidity, high precision, high speed, high efficiency, high reliability and large torque.
- It can process the inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, grooving, chamfering, etc. of shaft and disk parts, and can also process complex hardware parts such as metric and inch straight threads, conical threads, and end threads.
- Computer-aided structural design and finite element FEM analysis provide the best structural design.

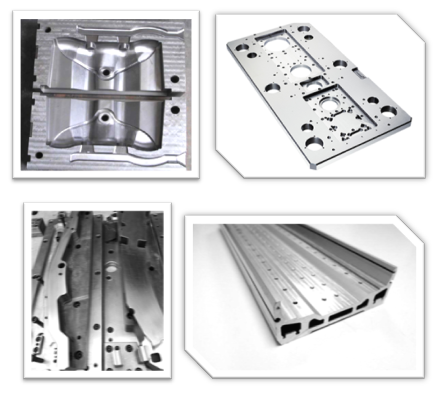

Processing parts
Application
Mold manufacturing industry:The 3kw servo motor provides strong power, which can efficiently handle milling, boring and other processes in mold processing. The three-axis travel of 800500550 can also meet the processing needs of molds of different sizes, helping to create high-precision molds.
Auto parts production:The stable performance of the machining center ensures the consistency of parts, and the powerful servo motor can quickly complete the engine parts.
Aerospace:The high precision and high stability of this equipment make it competent for the processing of various precision parts in the aerospace field, such as aircraft structural parts, engine components, etc., ensuring the dimensional accuracy and performance reliability of the parts.
General machining:The three-axis travel can adapt to the processing of parts of different specifications various gears, shafts, boxes and other parts.
Troubleshooting
| Common faults | Possible case | Solved |
| Spindle overheating | cooling device issue or grease not work | Check the cooling device or change the grease |
| Inaccurate | program set correct ,the main track broken or | Check the guide rail wear, Check and correct program parameters |
| CNC system alarm | Program error; unreasonable parameter setting; system failure | Check and modify program errors; reset reasonable parameters; |
| Poor chip removal | Too much material accumulation; chip removal motor failure | Clean up the accumulated chips; check the chip removal motor, repair or replace it |
Sales service
* Instructions for use: Online operating instructions and usage videos are available, and on-site training requires additional fees
* Online guidance: Professional engineers provide online technical guidance to quickly solve customer problems
* Provide 3-year warranty and lifetime technical support services
What's your main products of your company?
We mainly produce and sell various types of CNC machining centers, including vertical machining centers, gantry machining centers, horizontal machining centers, five-axis machining centers, profile machining centers, etc. We have our own factory to support customization and welcome factory inspections.
What is the minimum order quantity?
Minimum order is one piece but a 30% deposit is required.
What payment methods are supported?
T/T , Alibaba, Paypal, USDT, Alipay, Wechat, etc
Which type shipment way ?
About shipment that we have own deliver way like sea method or truck method .
